1972-1974 Corvette Tachometer Electronic Conversion 5600 RPM



1972-1974 Corvette Tachometer Electronic Conversion 5600 RPM

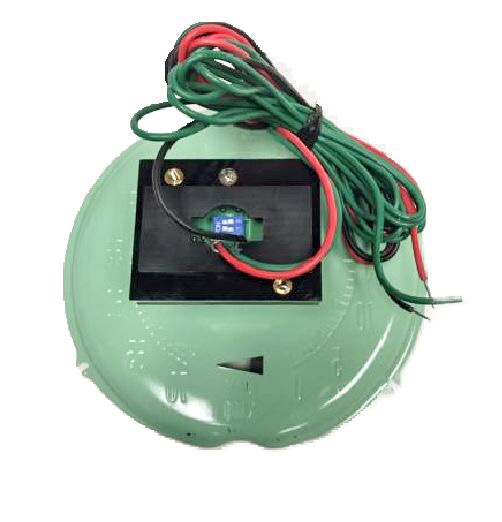

This is a new, reproduction 5600 RPM Redline Tachometer Assembly.  This unit is electronic. There is a setting that will make the tach operable with LS engines! Great for Resto-Mods, or cars that have no tach drive generator or distributor.  Each individual part in this tachometer is new.  The tachometer is calibrated properly using a digital square wave generator.

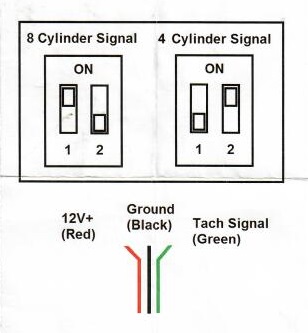

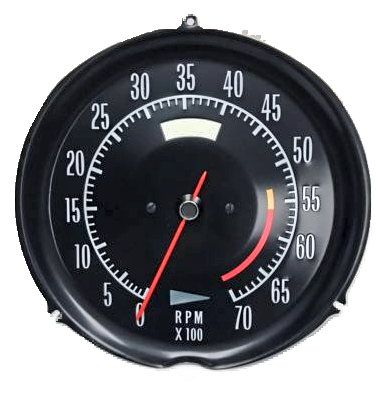

Shown is a face that is correct  for 72-74 We can also build units with the 5300, 6000, 6500 RPM redlines for other 72-74 applications. Please specify if you want another redline when making your purchase! If there is no mention of the other faces, you will receive the face as pictured!!! There is a simple 3 wire hookup and the unit will install in your dash cluster without any modifications should you or any other owner desire to change back to the original mechanical unit!

Click here to read about how we manufacture brand new tachometers!

Remember, we will ship your order for free in the lower 48 states!




Additional information

Weight3 lbs
Dimensions9 × 9 × 9 in

1972, 1973, 1974
